Salt Spray Tester

Model No:	FZT/SST-1036
Brand	Fazertec
Applications:	electroplating, coating, anodizing, etc.
Industries:	Metal
Materials:	Neutral salt spray test, Acetic acid spray test and Copper Speed up Acetic acid spray test.
Standards:	JIS D-0201, K5400. D0205, H8681 / ASTM B-117,ISO 9227, JIS Z 2371, JIS H 8502

QC-711M/L Salt Spray Tester is used for testing parts rust-proof ability that had been through surface treatment such as electroplating, coating, anodizing, etc. With misty form’s salt water to speed up corrosion, in an attempt to test specimen rust-proof ability in a short time, this tester is suitable to use in hardware, screw and electroplating industries and research organizations, etc.

There are three types of tests: Neutral salt spray test, Acetic acid spray test and Copper Speed Acetic acid spray test. Three test specimens are needed or according to an agreement. Vertical Suspending specimens or with the vertical line as 15-30゜to put in the test chamber, specimens interval should not below 20mm, liquid drops on brace should not drop on the specimens, set required time to proceed with test and after finishing, use flow cold water wash specimen surface deposited salt, examining surface and levels after drying.

Specification

Application

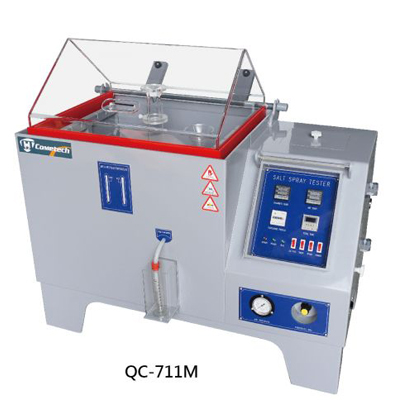

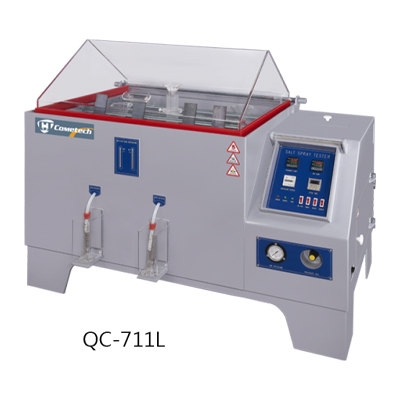

Model			QC-711M	QC-711L
Required Collecting Cup			1Pc	2Pcs
Power of Heater			1000W	2000W
Temp. Range	Chamber		Room Temp ~ 35℃
Temp. Range	Air		Room Temp~ 47℃
Machine Functions	Temp. Accuracy		± 0.5℃
	Saturated air Pressure (Kg/cm2)		0.8 ~ 2.0 ± 0.1 kg/cm²
	Spray volume (ml/80 cm2 /hr.)		0.5 ~ 3.0 ml/hr
	P.H.	Salt Spray	6.5 ~ 7.2 ml/hr
	P.H.	Cupric Acetate	3.0 ~ 3.2 ml/hr
Material	Exterior		P.V.C. or P.P
Material	Interior		P.V.C. or P.P
Systems	Salt Solution		Salt Spray, Cupric Acetate
	Heating		Titanium alloy Heater
	Control		PID Digital electronic + SSR control
Safety System			Circuit system load protection, over heating load protection, insufficient medicinal liquid protection
Features			※It is made of PP & P.V.C. with strong mechanics structure; Machine frame is acid proof, alkali proof, temperature proof and never aging, suitable for salt spray, cupric acetate various test specifications
			※Patent nozzle makes spray device to spray fog fast and evenly
			※With hydrometer：Assist user to make salt solution and copper acetate solution, through hydrometer to confirm concentration
			※Fog volume and accelerating speed are adjustable for aging.
			※Specimen tilt 20°±5 to make the solution which falls on the specimen surface remain at fixed concentration.
			※Air tight system: falling fog will not spread out to corrode other metal parts.
			※Water will drain automatically if water level exceeds the limitation.
			※Exhaust vent：Keep the concentration of fog inside the chamber.
			※Functions：Anti-corrosion test for various surface treatments such as anodizing, electroplating, coating…etc.
			※Inner tubes with anticorrosive level to less the maintenance times
Power			Single phase 220V，50/60Hz
Internal Dim. W × H × D(cm)			60 × 40 × 45	90 × 50 × 60
External Dim. W × H × D(cm)			109 × 110 × 90	150 × 124 × 105
Weight			90 kg	120 kg
