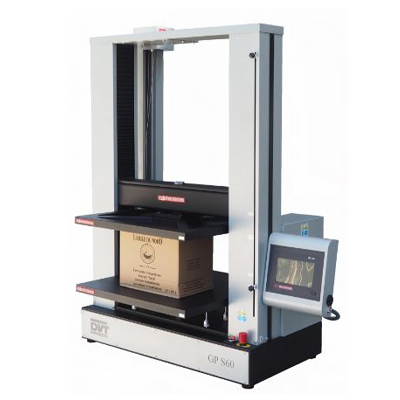

Digital Box compression tester

Model No:	FZT/DBCT-1033
Brand	Fazertec
Applications:	compression, closing, fracture, stretching, permanent deformation.
Industries:	plastic pipes, glass, porcelain, Paper Packaging, Corrugated Box, Paper Core
Materials:	board, plastic pipes, glass, porcelain, tile, cement-based materials, automotive products, forestry products, construction materials, Corrugated Box, Paper Core
Standards:	TS EN 12048, EN 22872, TAPPI T 804, FEFCO 50, AFNOR H 13-001, TS 6717 EN ISO 7263 (DVT GP D S32 K), TAPPI T 809 (DVT GP D S32 K), TS 127735 (DVT GP D S32 K), ISO/DIS 12192.2 (DVT GP D S32 K), ISO 3037 (DVT GP D S32 K), ISO 3085 (DVT GP D S32 K)

Model No:

FZT/DBCT-1033

Brand

Fazertec

Applications:

compression, closing, fracture, stretching, permanent deformation.

Industries:

plastic pipes, glass, porcelain, Paper Packaging, Corrugated Box, Paper Core

Materials:

board, plastic pipes, glass, porcelain, tile, cement-based materials, automotive products, forestry products, construction materials, Corrugated Box, Paper Core

Standards:

TS EN 12048, EN 22872, TAPPI T 804, FEFCO 50, AFNOR H 13-001, TS 6717 EN ISO 7263 (DVT GP D S32 K), TAPPI T 809 (DVT GP D S32 K), TS 127735 (DVT GP D S32 K), ISO/DIS 12192.2 (DVT GP D S32 K), ISO 3037 (DVT GP D S32 K), ISO 3085 (DVT GP D S32 K)

TECHNICAL INFORMATION

Touch screen.
Emergency stop button.
2 columns system.
Precision : ±0,5%.
Operation voltage : 220VAC, 50 Hz.
Power consumption : max. 1 KVA
Speed adjustment : between 0,001-500.000 mm/min.
Movement precision : 0,001 mm.
Programmed stop.
Stopping, depending on the Compression/Fracture or distance.
Standard software is available.
Newton, Kg or MPa options.
Turkish, English and French language options.
Maintenance-free, solid and reliable structure.

OPTIONAL ADD-ONS

Different jaw models available.
Computer and printer connection.
Additional units for specific tests.
Special movement precision.
Special speed control range.
Extensometer.
Hot- cold ambient cabins.
N/s option.
Metal or plexiglas safety cage.
Light barrier.

Specification

Application

MATERIALS CAN BE TESTED

Corrugated cardboard, plastic pipes, glass, porcelain, tile, cement-based materials, automotive products, forestry products, and construction materials.

APPROXIMATE DIMENSIONS AND WEIGHT

Width: 114 cm
Depth: 55 cm
Height: 135 cm
Wight: 190 kg

INFORMATION

SOME OF THE TESTS CAN BE APPLIED

Product testing such as compression, closing, fracture, stretching, permanent deformation.

We provide Ranges of applications. download the brochure from here

Ranges-of-Applications-and-Technical-Data_FZ_-1 (1)
