Model No:
 FZT/ATM-1041
Brand
 Fazertec
Applications: Simple Operation, Automatic Operation and Objective, Reproducible Measurement Results
Industries:
 the model series 2000 has a stable and rigid basic structure with an encapsulated, separate measuring structure.
Materials: Metal
Standards: DIN EN ISO 5084

Get a Quote
Categories:

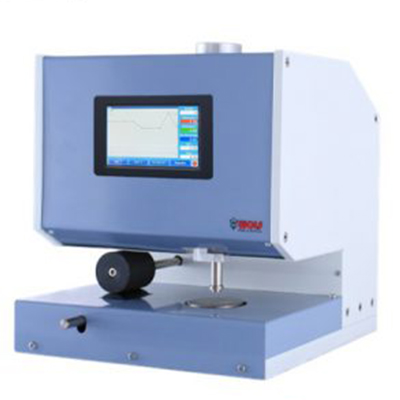

The thickness gauges of the model series 2000 have a stable and rigid basic structure with an encapsulated, separate measuring structure. The devices are the first choice if you value high accuracy (up to 0.001 mm), simple operation, automatic operation and objective, reproducible measurement results. The DM 2020 combines all the advantages of the DM 2010, but also has the option of material feed. You can set the feed length and the feed speed.



Specification
Application
  • Touchscreen with menu navigation in German or English
  • Display lighting
  • Statistics display
  • Automatic zero-point control
  • Preselection of the measuring cycles
  • Preselection of the measuring range
  • Adjustable dwell time: 1-60 sec.
  • Motorized button movement
  • Connection for foot switch
  • Automatic material feed, adjustable
  • Digital interface
  • Available scaling: 0.001 mm, 0.01 mm
  • Possible measuring ranges: 0 – 10mm, 0 – 25mm
  • Length x width x height (with measuring range 0 – 10 mm): 300 x 300 x 320 mm
  • Weight with measuring range 0 – 10 mm: 31.5 kg
Range of Functions
  • Resistive 5 ″ TFT touchscreen
  • Motorized button movement
  • Display lighting
  • Unit mm / inch can be changed
  • Language selection German / English
  • Aut. Zero point control
  • Single measurement
  • Preselection of measuring cycles (automatic measurements)
  • Preselection measuring range (stroke level)
  • Adjustable dwell time
  • Adjustable min./max. Limits
  • Statistical evaluation numerically
  • Statistical evaluation linear diagram
  • Aut. Material feed (variably adjustable)
  • Including evaluation software Pro
  • Color selection on the touchscreen
  • Digital interface
  • Connection for foot switch
  • Available scaling: 0.01 – 0.0001 mm
  • Possible measuring ranges: 0-10 mm, 0-25 mm, 0-50 mm
  • L x W x H with measuring range: 300 x 300 x 320
  • Weight in KG with measuring range 0-25mm: 31.5

We provide Ranges of applications. download the brochure from here

Ranges-of-Applications-and-Technical-Data_FZ_-1 (1)
