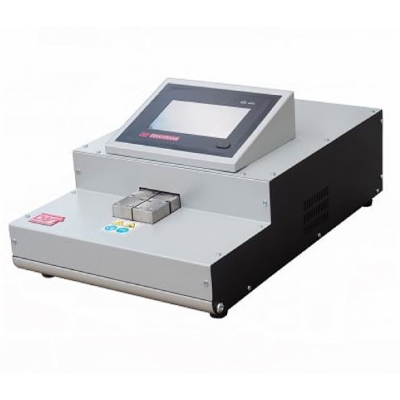

Model No:
 FZT/SSCT-1034
Brand
 Fazertec
Applications: The tests compression strength of papers and cardboards used in box and container manufacturing.
Industries:
 Paper
Materials: PAPER, CORRUGATED CARDBOARD
Standards: ISO 9895, TS ISO 9895

Get a Quote
Categories:
  • The tests compression strength of papers and cardboards used in box and container manufacturing.
  • The test results in the calculation of the compression strength and a compression index.
  • This equipment allows to produce of strong boxes and minimizes the required quantity of raw material.
Specification
Application
TECHNICAL INFORMATION
  • Operating voltage: 220 V 50 Hz.
  • Touch-screen.
  • Max. load: 2300 ± 500 N.
  • Moving and fixed jaws.
  • Speed of moving jaws: 3±1 mm/min.
  • Possibility of displaying test results in kN/m .
  • Sample dimensions: 15 ±0,1 mm x 70 mm (minimum).
  • Compression strength measured in an area smaller than 0,7 mm x 15 mm.
  • Computer connection for real-time graphics.
  • Specially developed software.
  • Language options: Turkish, English, French and Russian.

OPTIONAL ADD-ONS
  • Sample cutting blade.

RELEVANT STANDARDS
  • ISO 9895
  • TS ISO 9895

APPROXIMATE DIMENSIONS AND WEIGHT
  • Width: 50 cm.
  • Depth: 72 cm.
  • Height: 35 cm.
  • Weight: 57 kg.

We provide Ranges of applications. download the brochure from here

Ranges-of-Applications-and-Technical-Data_FZ_-1 (1)
