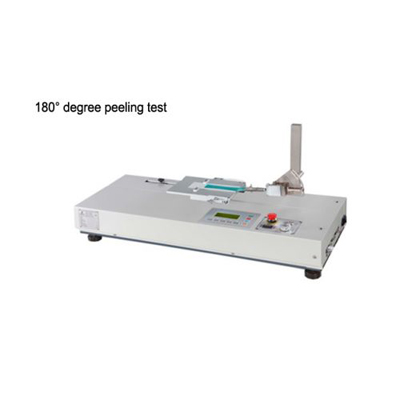

This tester is a horizontal design, is specially developed for 180° peeling test and friction force horizontal tensile, it can reduce specimen self-weight to affect test force during the test, a machine with a small volume to save space, and is easy to operate. It suits for small capacity within 100N test, accompany by various grips, and jigs, and is suitable for electron, tape, etc. industries. High accuracy and expandable to the terminal mode or connect with pc.

(1) Displayer

1. Adopted with 7- an inch TFT Color touch screen.
2. Chinese, English, and Japanese, and Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time.
4. Test setting, can set test speed, test direction, automatic position return, and breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force, and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection can be Metric units, Imperial units.
10. Over-travel, overload protection, and overtime machine stop.
11. Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.

Software Function

1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down buttons to adjust the fixture position.
3. Compatible with Windows 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish, and Polish display
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly controls the machine action.
6. Can import multiple test data displays simultaneously.
7. Unit selection can be Metric units and Imperial units.
8. Form flexibility and self-planning information analysis.
9. Data names can be self-set and can have a self-defined formula.
10. Test Screen can be selected data display, graphic display, or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope, and so on.
13. Test tensile, compression, bending, peeling, spring, and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions, Ex. hold tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing the easy-to-set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, and increase testing mechanism.
