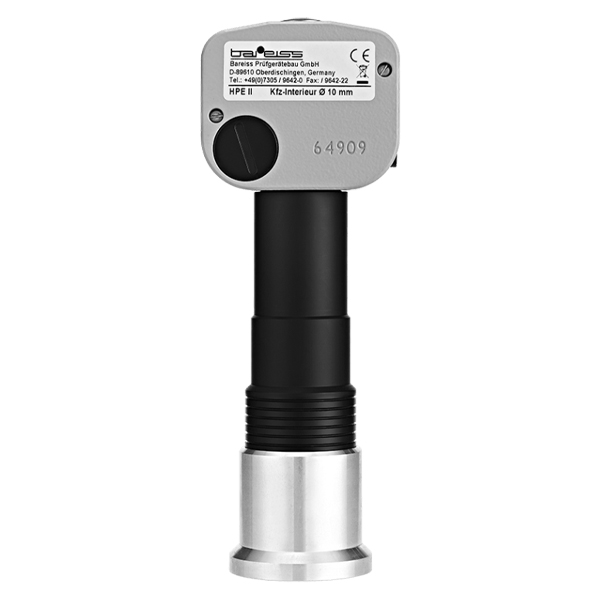

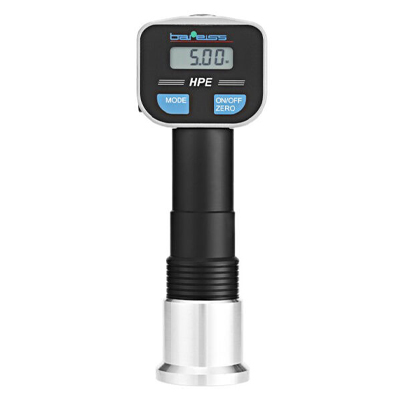

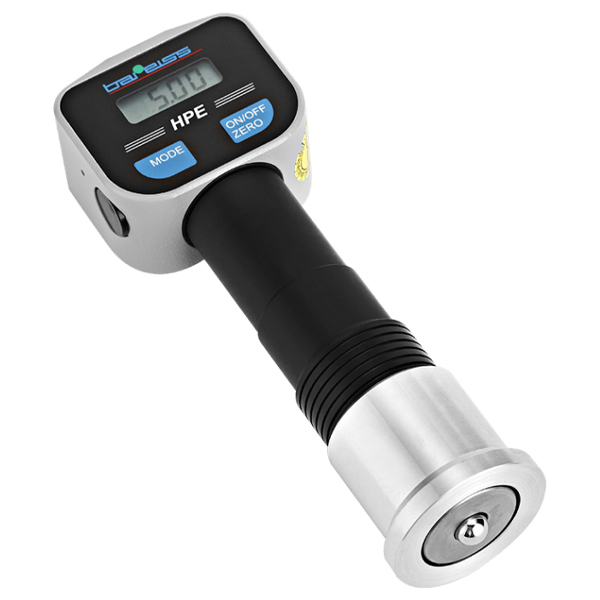

CAR INTERIOR TESTER – HPE II KFZ
HPE Ⅱ KFZ car interior hardness tester: The HPE II KFZ is a hardness tester developed for composite materials of two or more material groups. The composite material typically contains foam, and other materials may contain metals, plastics, leather, or wood to increase structural strength. It is most suitable for use in automobile interior such as seat, armrest, headrest, inner door plate to do hardness test.
Model No: |
FZT-BR/CI-1006 | ||
---|---|---|---|
application: |
Device for measurement of surface tensions on foam components and foamed sandwich constructions with the flexible upper layer and hard base skin. |
||
Basic equipment | Digital measuring device with measuring range: 0-25 N Display: 0,01 mm Sphere shaped indenter Ø 10 mm - or Display 0,1 mm Sphere shaped indenter Ø 15 mm | ||
Technical Data | Memory for 300 measured valuresLithium battery 3.6V with approx. 2000 hours operating time Data output RS 232 Measurement: LxWxH 190 x 70 x 40 mm Weight 600 g |
Description
Documents
Application
Download the Brochure From Here
We provide Ranges of applications. download the brochure from here
Ranges-of-Applications-and-Technical-Data_Fz
